Introduction

Weight gain in tablet coating is not a cosmetic number. It is the amount of coating material added to a tablet, measured as a percentage of the tablet's original weight. It directly controls how the coating performs. A film coat that is too thin will not fully cover the tablet. A functional coat that is too thick will release the drug more slowly than intended.

The real difficulty is not measuring weight gain. It is keeping it consistent from batch to batch. The same target weight gain can hide very different coating quality underneath it, since two batches can reach the same average number through completely different spray conditions, one uniform and one uneven. Coating consistency problems often show up as a passed weight gain check followed by a failed dissolution or appearance result.

At Vikram Thermo (India) Ltd., we supply pharmaceutical coating polymers and work directly with formulators on the process variables that determine how that material actually lands on the tablet. This article sets out what weight gain really measures, which process variables drive consistency and how to think about the two together.

What Weight Gain Actually Measures

Weight gain is the extra weight added to a tablet during coating, shown as a percentage of the tablet's starting weight. If a tablet weighs 200 milligrams before coating and 206 milligrams after, the weight gain is 3 percent.

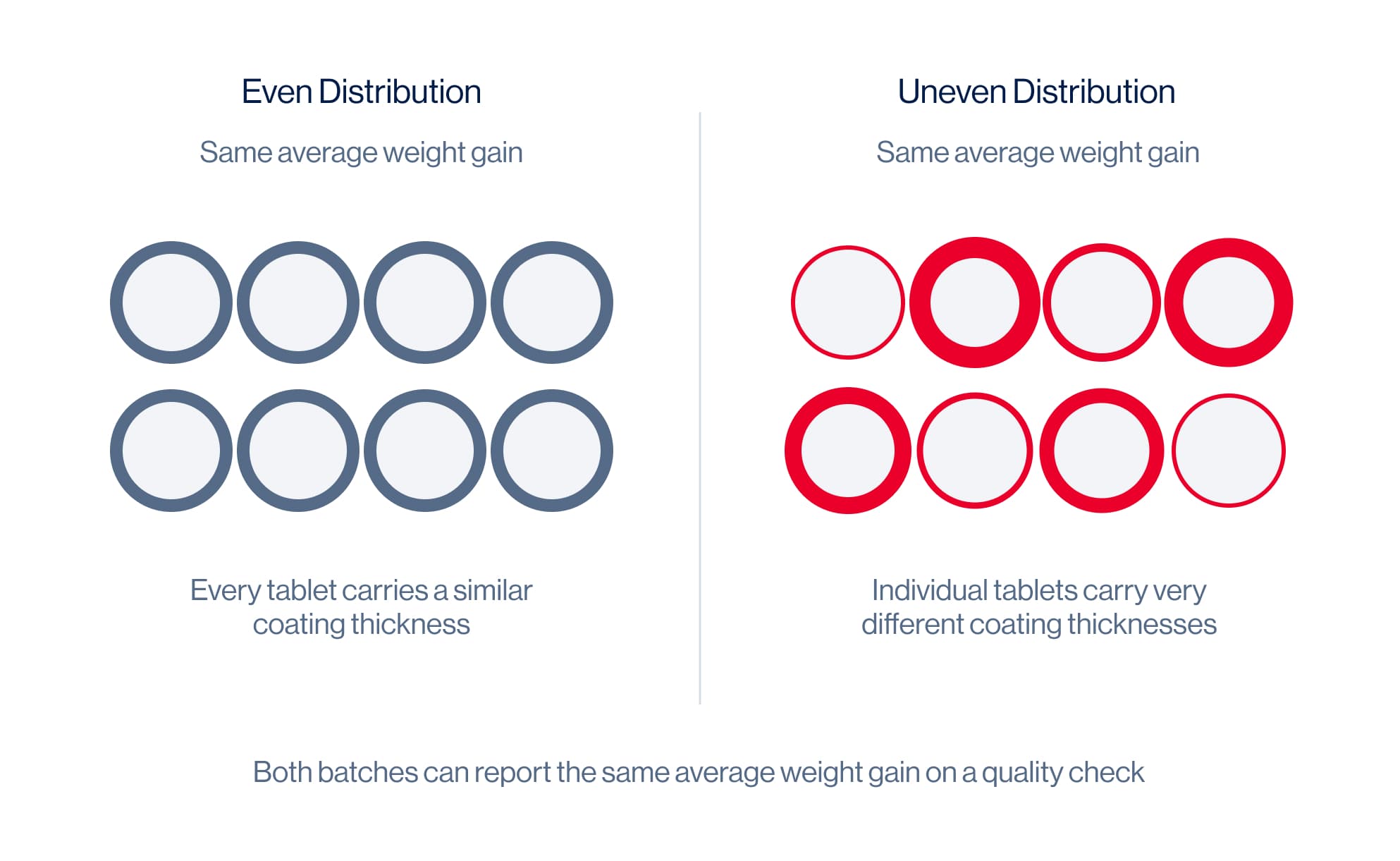

That number by itself does not say much. What matters is how evenly that 3 percent is spread across every tablet in the batch. A batch coated with any film coating polymer for tablets can hit the target average weight gain while some tablets carry a thin, patchy coat and others carry a thick, uneven one. The average passes. The individual tablets do not perform the same way.

For a simple cosmetic film coat, this unevenness might only affect appearance. For a functional coat, an enteric coating polymer layer or a sustained release coating polymer layer, it changes when and how fast the drug is released. A tablet with a thinner coat than its neighbors can release early. A tablet with a thicker coat can release late or not fully within the expected window.

Why It Matters

The cost of inconsistent coating rarely shows up where a team expects it. It shows up as rework, a delayed release timeline or a failed stability batch discovered months after the coating pan was already emptied and the tablets moved on to packaging. A batch that fails at that stage cannot simply be recoated. The fix is a new batch, not an adjustment to the one already in the supply chain.

This matters most for functional coatings, where the coating is doing a specific job, controlling release timing or protecting against stomach acid. A cosmetic coating that turns out slightly uneven is a visual defect, usually caught early and corrected without much cost. A functional coating that turns out slightly uneven is a performance defect. Performance defects tend to surface late, after packaging, after a stability pull, sometimes after the product has already shipped.

The later a coating consistency problem is found, the more expensive it becomes to fix. That is the practical argument for building consistency checks into the process itself rather than relying on a single weight gain measurement taken at the end of the run.

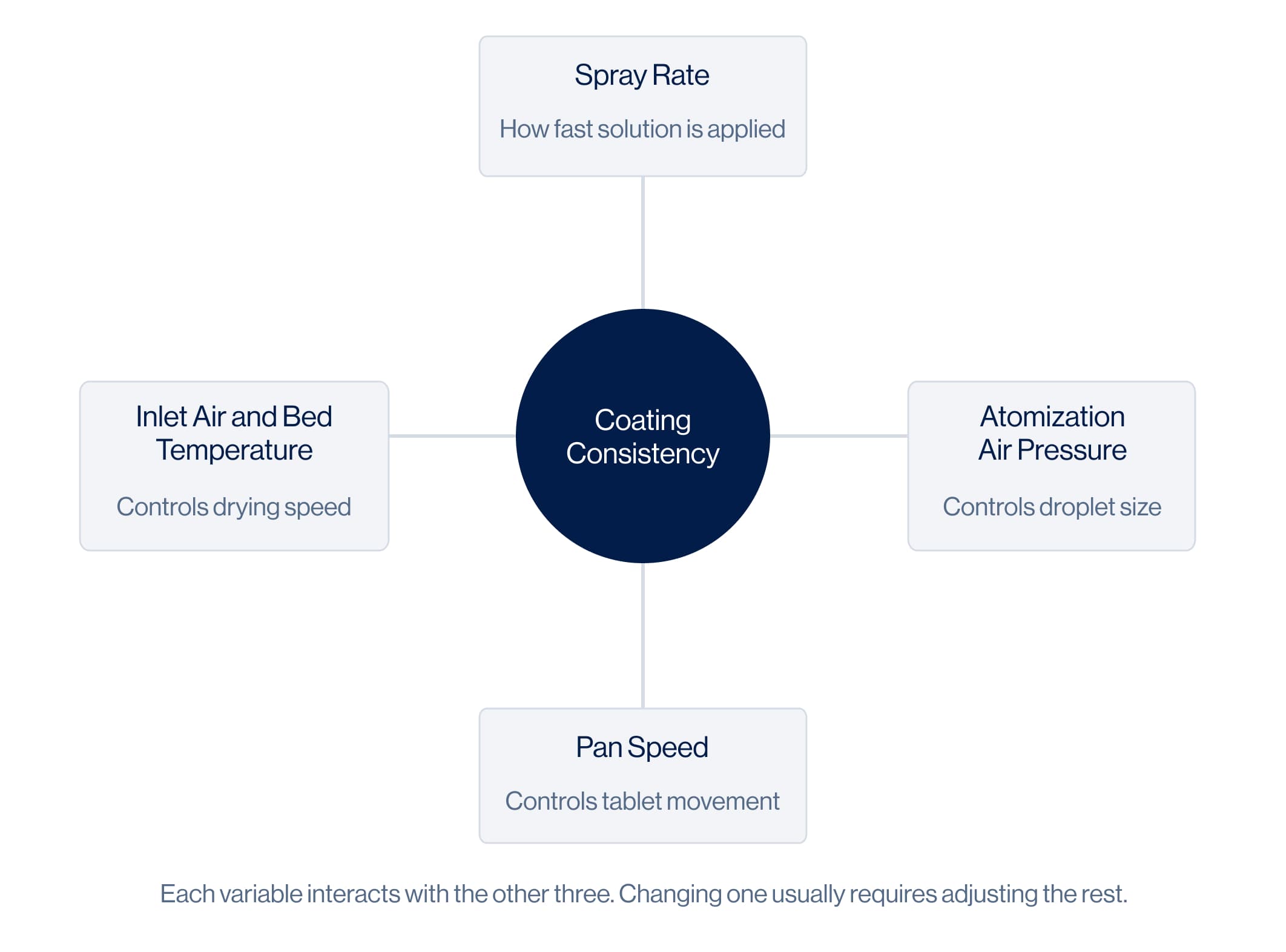

The Process Variables That Drive Consistency

Four variables have the most influence on how evenly a coating applies. All four interact with each other.

Spray rate.

How fast the coating solution is applied. Too fast and the tablet bed cannot absorb and dry the solution before more arrives, leading to uneven buildup and tablets sticking together. Too slow and the process takes longer without necessarily improving uniformity.

Atomization air pressure.

This controls the size of the droplets coming out of the spray gun. Larger droplets land wet and can spread unevenly or pool in tablet indentations. Smaller, well-atomized droplets spread more evenly but can dry too fast and fail to bond properly if the pressure is too high.

Inlet air temperature and bed temperature.

These control how quickly the sprayed solution dries once it lands on the tablet. Too cool and the coating stays wet too long, risking sticking and uneven distribution. Too warm and the droplets dry before they can spread evenly across the surface.

Pan speed and tablet movement.

This determines how often each tablet passes through the spray zone and how much mixing happens in the bed. A pan that moves too slowly gives some tablets more exposure to the spray than others. A pan that moves too fast can reduce residence time in the spray zone unevenly across the batch.

None of these variables works in isolation. A change to spray rate usually requires a corresponding adjustment to inlet temperature or atomization pressure to keep the aqueous film coating system landing correctly.

Applications by Coating Type

‍

Common Challenges

Relying only on a scale and skipping visual or dissolution checks.

A weight measurement cannot see a surface defect that adds no meaningful weight, cracking, uneven color or poor adhesion in a specific section of the batch. A quick visual pass or a spot dissolution check alongside the weight measurement catches problems that the scale alone will not.

Adjusting one process variable without checking the others.

Spray rate, atomization pressure and temperature are connected. Changing one without reviewing the others is a common source of batch to batch drift.

Assuming a scaled-up batch behaves the same as the lab batch.

Pan geometry, load size and airflow all change at larger scale, which means the same process settings can produce a different weight gain distribution at production scale than they did in development.

Skipping in-process weight checks during the run.

Waiting until the end of a coating run to check weight gain means any drift during the process goes uncaught until it is too late to correct.

‍

Formulation Insights

Weight gain consistency starts before the coating pan is even loaded. Tablet core hardness, shape and surface texture all affect how evenly a coating can be applied, so a coating that behaves inconsistently is not always a coating process problem. Sometimes the core itself is the source of the variability.

For functional coatings specifically, it is worth validating the relationship between weight gain and actual performance, dissolution or acid resistance, at more than one point in the coating range, rather than only at the final target. This shows how sensitive the product actually is to small variations in coating thickness, which is useful information when setting realistic process tolerances.

FAQ

1. What is a normal weight gain target for a film coat?

Most cosmetic and immediate release film coats target 2 to 4 percent weight gain, though the exact figure depends on the tablet size, shape and the specific coating system used.

2. How often should weight gain be checked during a coating run?

Many operations check at multiple points during the run rather than only at completion. Catching a drift in progress costs far less than discovering a problem after the batch is already finished and moved on to the next stage.

3. Which process variable has the biggest impact on consistency?

There is no single answer, since spray rate, atomization pressure and temperature all interact. A change in one usually requires adjusting the others to maintain consistent results.

4. Does a higher weight gain always mean slower drug release?

For most functional sustained release coatings, yes, thicker coatings generally slow release. This relationship should be confirmed for each specific formulation rather than assumed.

5. Why does a process that worked in the lab sometimes fail at production scale?

Pan size, batch load and airflow all change between lab and production scale, which can shift the weight gain distribution even when the process settings look identical on paper.

Conclusion

Weight gain is easy to measure and easy to misread. A batch average that hits the target number does not guarantee that every tablet in that batch received the same coating. The variables that actually drive consistency, spray rate, atomization pressure, temperature and pan movement, need to be understood together, not adjusted one at a time in isolation.

As a tablet coating polymer manufacturer and GMP excipient manufacturer, we work with formulators on both the coating polymer system and the process conditions that determine how consistently that system applies. We are a pharmaceutical excipient manufacturer in India, backed by EXCiPACT GMP certification and WHO cGMP compliance across our manufacturing.
